TENDA A18

El Repetidor WiFi Gigabit Trabaja - Excelente con Routers de Fibra

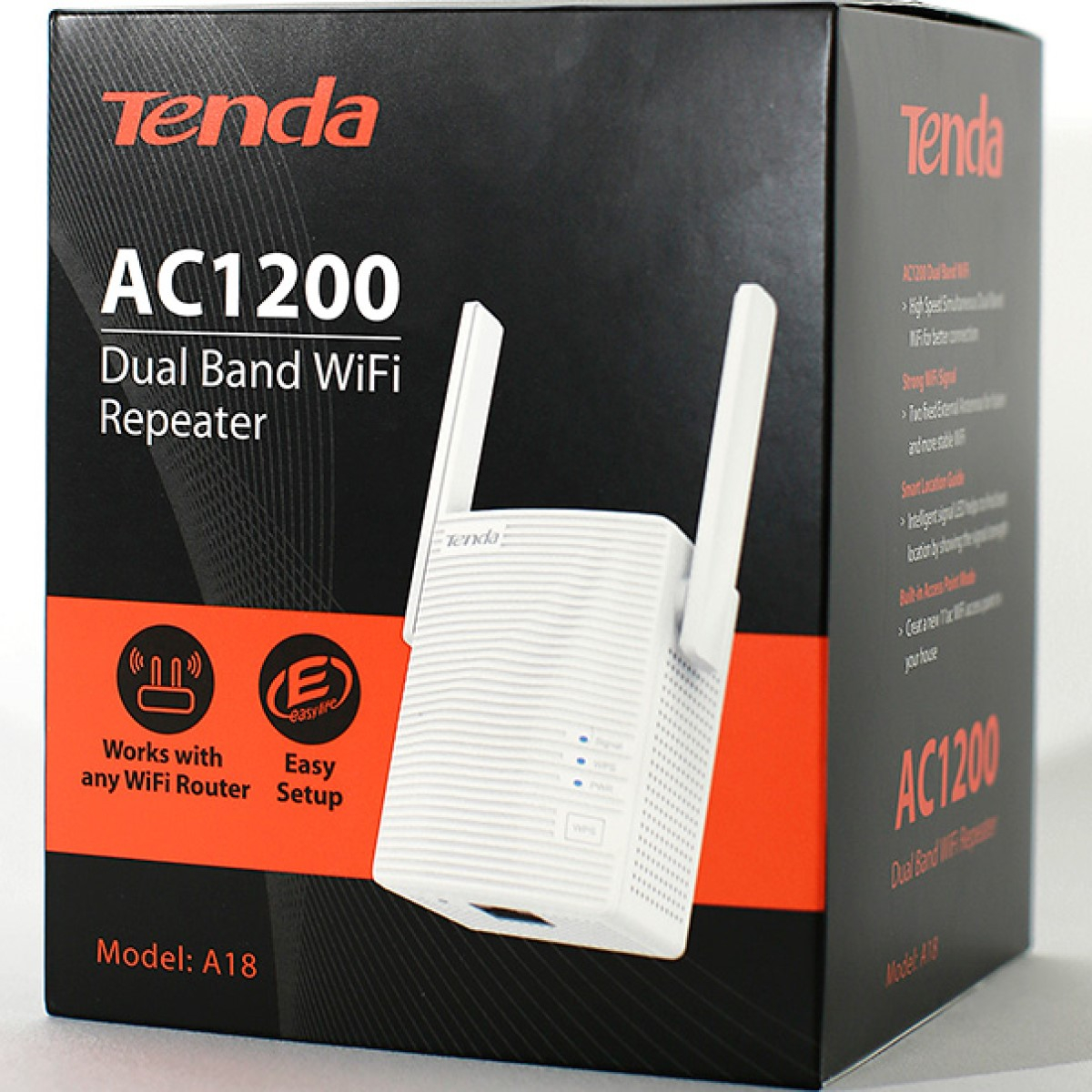

Repetidor WiFi Doble Banda AC1200 Tenda A18

Trabaja Excelente con routers de fibra para atravesar muros con mayor fuerza por la banda de 5GHz

Los routers ordinarios 11AC no tienen buen rendimiento al atravesar paredes en la banda de 5GHz. Con el A18 para repetir la red WiFi de 5GHz, la velocidad de transmisión de datos puede ser de hasta 867Mbps, dando un juego completo a la banda ancha óptica de 100Mbps. Al resolver la debilidad de la cobertura WiFi en la banda de 5GHz, el A18 te ofrece una experiencia de Internet rápida en casa.

Scan Quality Channel Automatically for Stable, Reliable and Fast Internet Experience

Equipped with high quality PCB dual band antennas, the radio frequency distance between antennas of A18 has been improved to um. Each antenna provides both 2.4 GHz and 5 GHz WiFi networks, and extends WiFi networks both on 2.4 GHz and 5 GHz bands . A18 can automatically select high quality channel for you when signal fluctuates, and keeps your devices online even in the move by switching to the network with stronger signals automatically.

Visual Signal LED Guides You to Find the Best Position

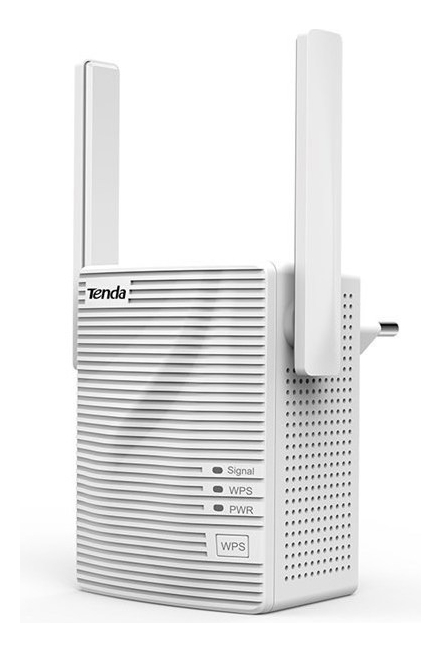

Guided by the color of Signal LED, you can easily find the best position for your repeater according to your actual network environment. Blue indicates good connection , and red indicates bad connection.

Configure Your Repeater via Smart Phones/Tablets

Simplicity is practical. You can configure your repeater via smart phones or Tablets

01.Connect your smart phone or tablets to the SSID of A18.

02.Start a web browser, go to re.tenda.cn,and set up your login password (optional)

03.Select a WiFi network to extend, and enter its WiFi password. Configuration is done

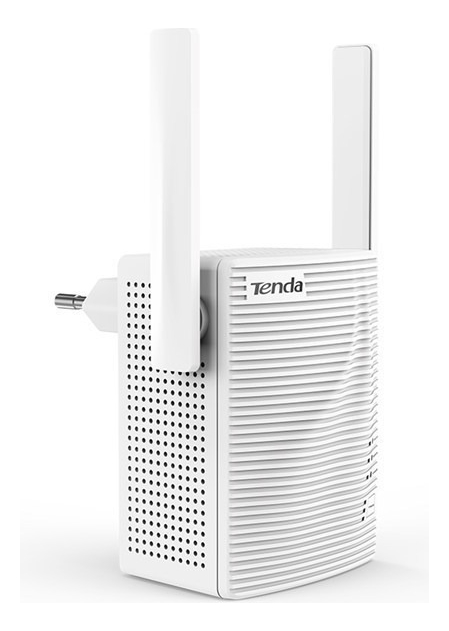

Elegant and Compact Appearance

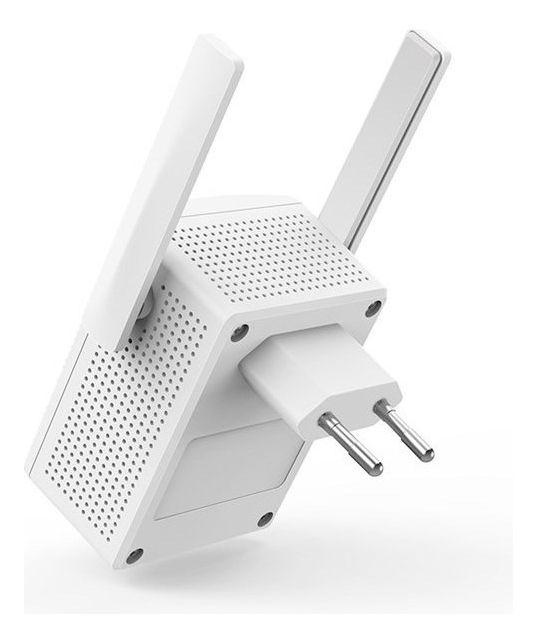

Featured with a small size, it is easy for you to plug A18 into your electrical outlet.

One More 100 Mbps LAN port for Wired Extension

Signal is full but the internet is still inaccessible? Want to watch online TV programs on a LCD TV with LAN port but without WiFi adapter?

A18 can relieve you from these two painstaking. By connecting the Ethernet cable from your router to the LAN port of A18, you can extend your existing WiFi network in wired manner. To watch online TV programs, you just need to connect the LAN port of A18 that has extended successfully to the LAN port of your LCD TV.

More functions

Hide SSID, Extend your existing WiFi network via WPS button, Mix WPA/WPA2 encryption mode

- Hide SSID

- WPS Function

- Encryption Mode

ESPECIFICACIONES TÉCNICAS

Hardware

Interfaces: 1*10/100Mbps RJ45

Antenna Type: 2 * Antena omnidireccional de doble banda externa 2dBi

Button:

- 1 * Botón WPS

- 1 * Botón de reinicio

LED Indicator:

- 1 * LED de señal

- 1 * LED WPS

- 1 * LED de encendido

Power Supply: 9V0.8A, built-in

Power Consumption: 5,2 W (consumo máximo de energía)

Dimension: 80mm*58mm*48mm(L x W x H)

Wireless

Wireless Standard: IEEE802.11b,IEEE 802.11g, IEEE 802.11n, IEEE 802.11a,IEEE 802.11ac

Frequency:

- 5 GHz(11ac)

- 2.4 GHz

Data Rate:

- 5 GHz: hasta 867 Mbps

- 2,4 GHz: hasta 300 Mbps

RSSI:

 2,4 GHz

- 11b-1M: -97dBm

- 11g-54M: -76dBm

- 11n-20M-MCS7: -74dBm

- 11n-40M-MCS7: -72dBm

 5 GHz:

- 11a-6M: -95dBm

- 11n-20M- MCS7: -74dBm

- 11n-40M-MCS7: -72dBm

- 11ac-80M-MCS9: -63dBm

Transmission Power: <20dBm

Wireless Modes: Modo de repetidor, modo de punto de acceso

Wireless Security:

- Modo de cifrado predeterminado: mezcla WPA-PSK / WPA2-PSK

- Algoritmo WPA: TKIP

Others

Certification: CE, FCC、RoHS

Plug Type: US, EU, UK, BR, AU, AR

Package Contents:

- 1 * repetidor WiFi de banda dual AC1200

- 1 * guía de instalación rápida

System Tool: Actualización de firmware, restauración de la configuración de fábrica, contraseña de inicio de sesión y reinicio

Environment:

- Temperatura de funcionamiento: 0°C ~ 40°C

- Temperatura de almacenamiento: -40°C ~ 70°C

- Humedad de funcionamiento: (10 ~ 90)% RH, sin condensación
